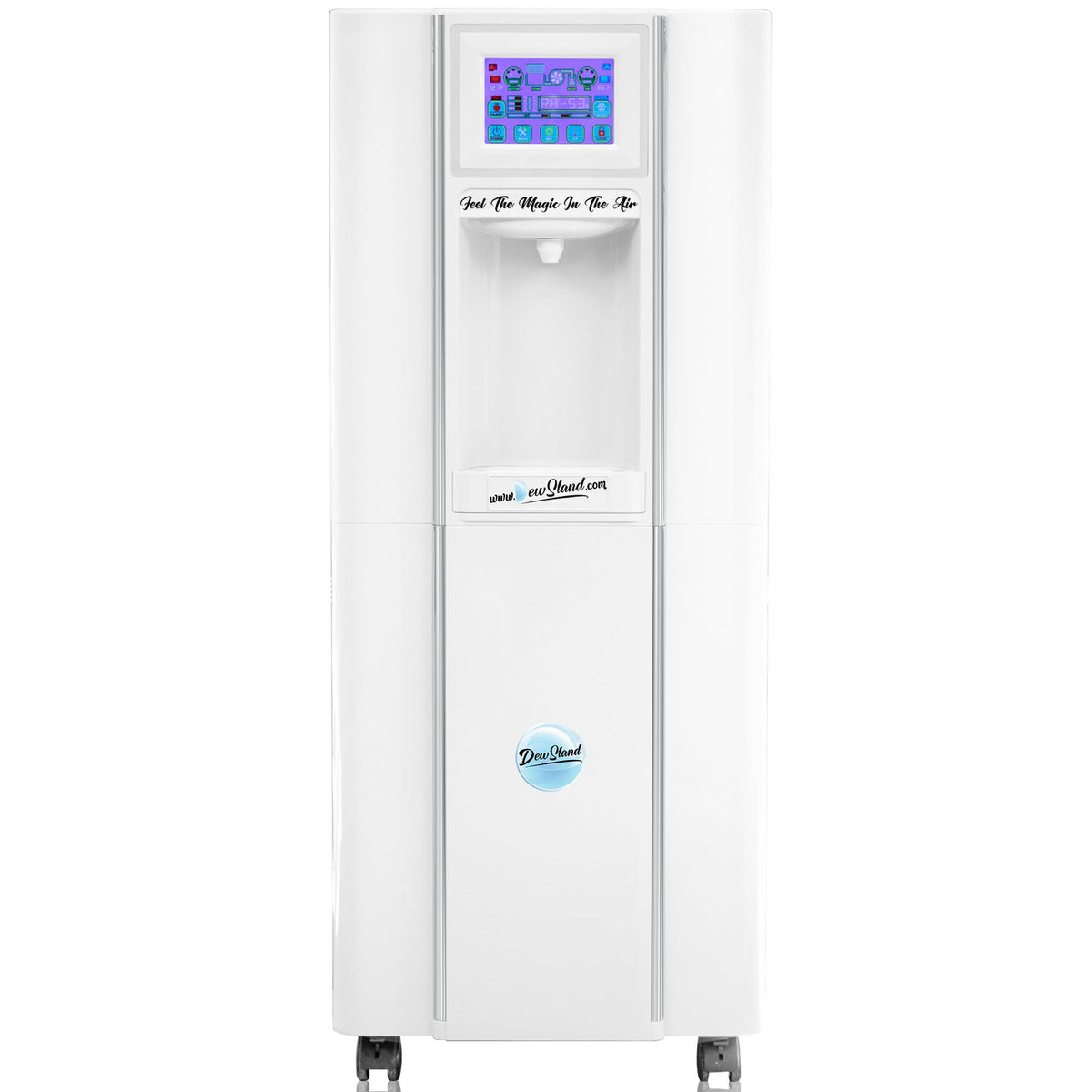

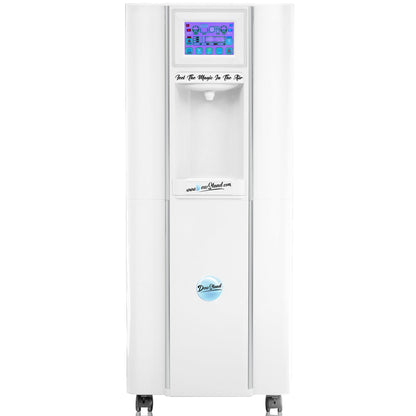

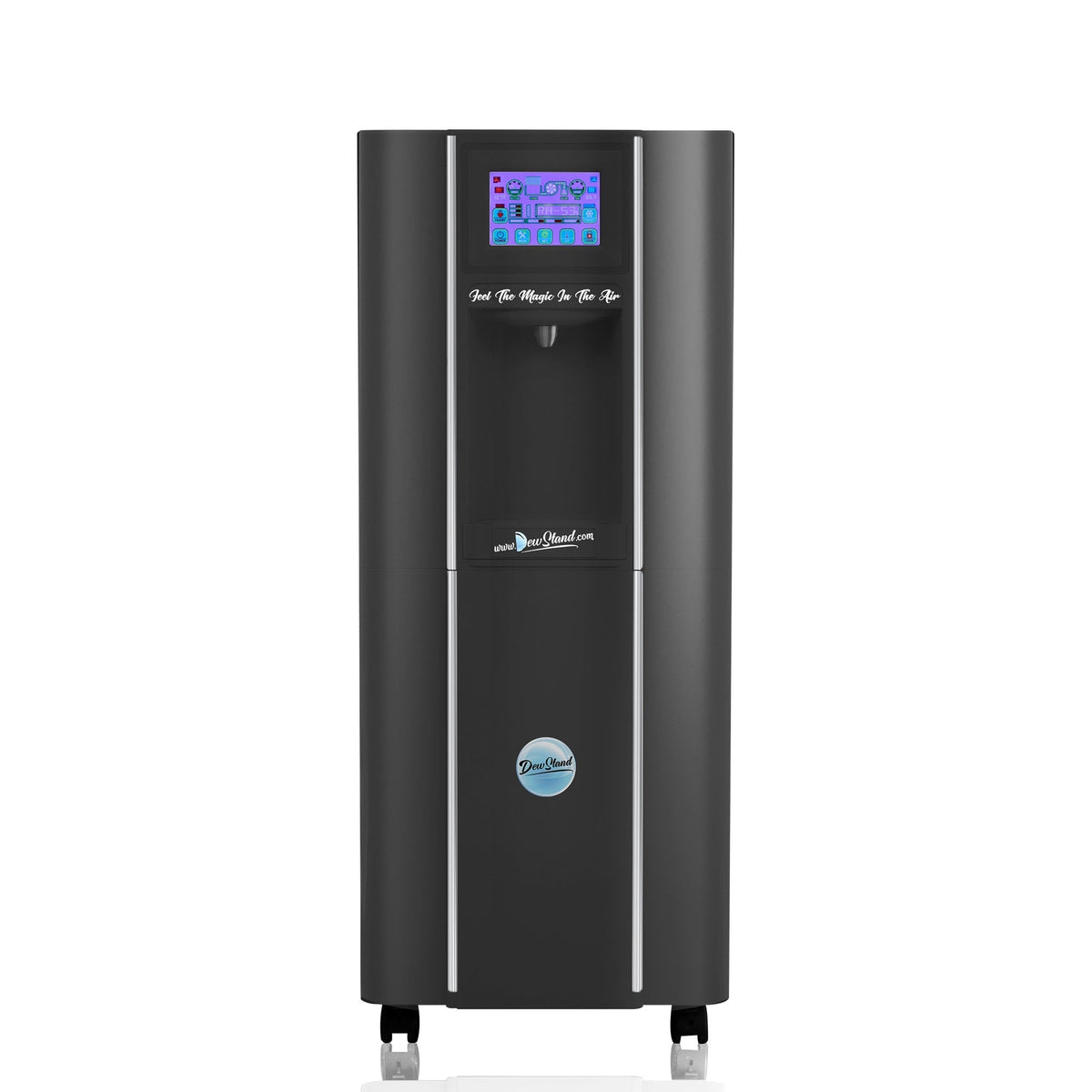

DewStand-A Flagship Atmospheric Water Generator (Model DSA-1F)

Water from Air Dispenser

The DewStand Model DSA-1F Atmospheric Water Generator (AWG) is a perfect addition to any home or work place. Hot & cold pure water output of up to 8 Gallons /day at 85 °F & 80 % Humidity.

The rated capacity will vary with humidity and temperature. Higher Temperature and Humidity levels result in higher output.

For example, this DSA-1F model will smoothly produce more than 3 Gallons per day of Pure Drinking Water even if your indoor temperature and humidity levels drop to 60 °F and 40% respectively.

Technical Operating Parameters and Features

Rated Capacity:

• 8 GPD (30 l/day)

Water temperature:

• 39-203 °F (4-95 ℃)

Working temperature:

• 59-104 °F (15-40 ℃)

Working humidity:

• 35-95 %

Treatment Steps:
Advanced Purification Technology including a sequence of U.V. Sterilization, a series of Sediment and Carbon Filtration, Reverse Osmosis & TCR

Storage capacity:

• 4 Gallons (15 Liters)
• (i.e. 2.5 L Dew, 10 L Pure Cold & 2.5 L Pure Hot Water)

Power Load:

• 500 W (Production)
• 500 W (Heating)

Power Supply:

• 110 V, 60 Hz (220 V, 50 Hz available upon request)

Refrigerant:

• R134a

Features:

• Hot & Cold Pure Water Output
• LCD Touch Screen Display
• Low Power Consumption
• Indoor Lifestyle and Low Noise Levels (i.e less than 65 db)
• Modern and Trendy Appliance Design

Dimensions & Weight

Dimensions:

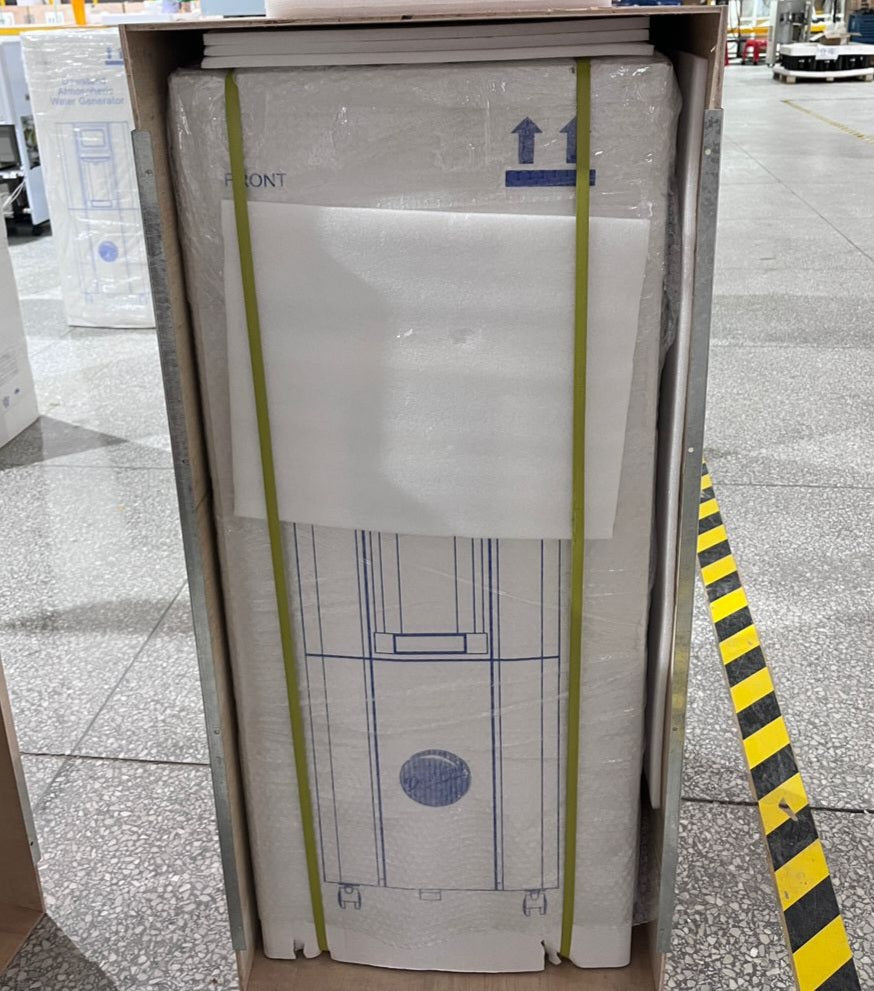

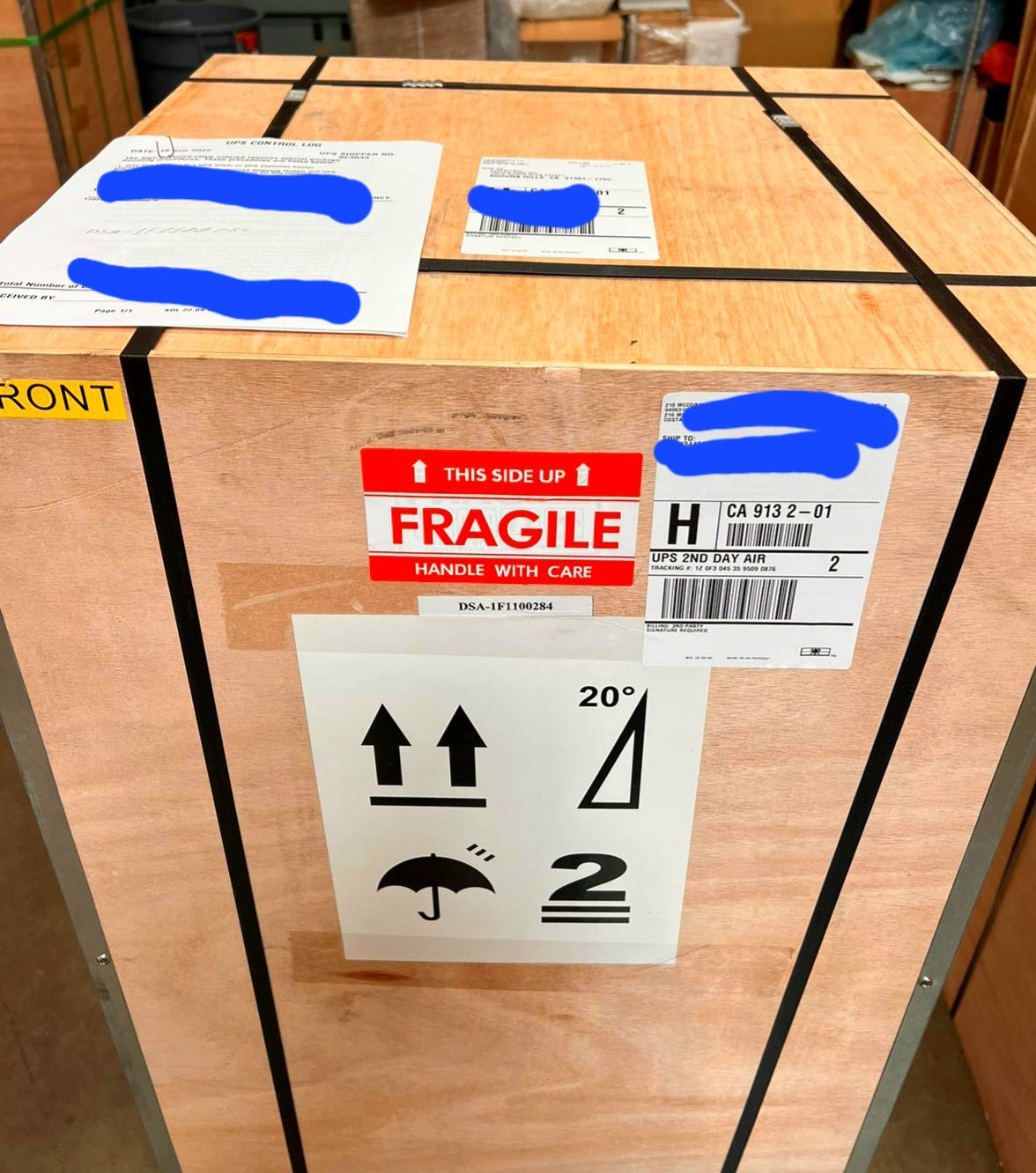

Gross (Shipping):
22 in Width x 22 in Depth x 48 in Height
(54.5 cm x 55 cm x 121 cm)

Net (Installed):
18 in Width x 17 in Depth x 44 in Height
(45 cm x 43 x cm x 112 cm)

Weight:

Gross (Shipping):
137 lbs (62 kg)

Net (Installed):
108 lbs (49 kg)
